Portable Folding Fast Fold Projection Screen
The Fast-Fold Screen System feature easy release latches for simple, quick set up and tear down of the screen.
When you don't have room for a permanently installed screen, the Fast-Fold system is the answer. It stores in a rugged storage case which also serves well when you are travelling.
Features:
- Speedy Cranks for easy assembly
- Install by hand, no need install kits
- Fabric can be change, Front or Rear Projection
- Carton package or Flight Case pakage all available
- The Fast-Fold System offers a stronger frame and legs.
- Screen can be adjusted up and down increments on legs
- Legs incorporate same Snap-Latch Hinge and concealed corner brace design as frame
- Corner braces are concealed within frame tubing providing greater strength and protection
- Aluminum tubing on frame provides greater strength while allowing for lightweight frame reliability
Parameter
Bigger size and customized all avaiable
| Model No. | Format | Diagnal Size | Viewing Area(Cm) | Frame Size(mm) | G.W(Kgs) | Packing Size(Cm) |
| FF07243 | 4:3 | 72" | 146x109 | 32x32 | 9.00 | 85x28x20 |
| FF08443 | 84" | 170x128 | 32x32 | 10.00 | 85x28x20 |
| FF10043 | 100" | 203×152 | 32x32 | 14.00 | 101x28x20 |
| FF12043 | 120" | 244×183 | 32x32 | 15.00 | 101x28x20 |
| FF15043 | 150" | 305×229 | 32x32 | 23.00 | 110x28x20 |
| FF072169 | 16:9 | 72" | 159x90 | 32x32 | 9.00 | 85x28x20 |
| FF084169 | 84" | 185x104 | 32x32 | 10.00 | 85x28x20 |
| FF100169 | 100" | 221×124 | 32x32 | 12.00 | 101x28x20 |
| FF120169 | 120" | 265×149 | 32x32 | 14.00 | 101x28x20 |
| FF150169 | 150" | 332×186 | 32x32 | 24.00 | 110x28x20 |
Deatils

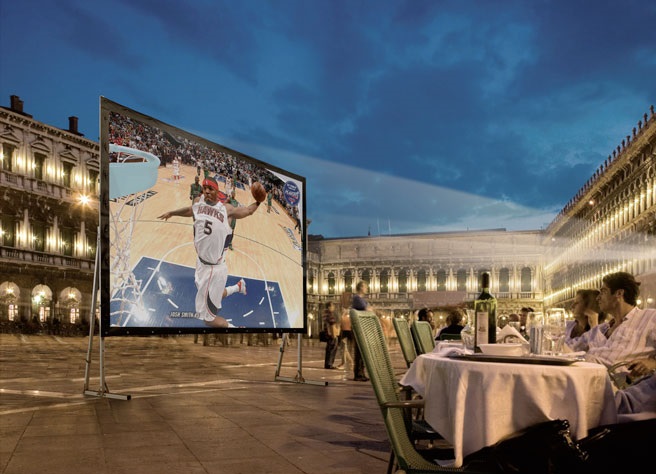

Application
About Us
The biggest factory projection screen in China,50000 units output per month.
Produce all type projection screen since 2004, honor to OEM and ODM for some famous International brand.
Products including:
Economical Screens: Tripod Screen, Electric Screen, Manual Screen, Table Screen
Home Cinema Screen: Tab Tension Screen, Electric Screen, Fixed Frame Screen, Curved Screen, In-ceiling Electric Screen, Black Diamond ALR Screen
Customized Event Screen: Big size fixed frame screen, Big Electric Screen, Fast Fold Screen, Eyelets Screen,180°/270°/360° Curved Simulation Screen
