SMX Laser Projector 20K Lumens: Brilliance, Redefined. Experience Unmatched Brightness and Color.
Product Description
Step into a new era of visual excellence with the SMX 20K, a professional-grade laser projector engineered to deliver stunning, larger-than-life images even in fully lit environments. Whether for a large auditorium, a bright classroom, a dynamic house of worship, or a commanding control room, this projector ensures your content is seen with absolute clarity and vibrant color.
Forget the limitations of conventional lamp-based projectors. Our advanced laser phosphor light source provides immediate start-up, consistent brightness from the first minute to the last, and a remarkably long lifespan of up to 20,000 hours. This means years of virtually maintenance-free operation, significantly reducing your total cost of ownership.
Features
High Brightness, High Contrast
The high brightness of 20,000 Lumens and high contrast of 3,000,000:1 enable realistic image reproduction, even in bright projection environment.
High Performance and Low Maintenance
Newly designed cooling system with sealed optical engine, filter-less design, and improved air flow provides high performance .Up to 30,000 hours of laser light source and filter-less design, reducing maintenance time and total cost of ownership.
Versatile installation capability
*Pin cushion/Barrel Correction
*4 corner/6 corner Keystone Correction

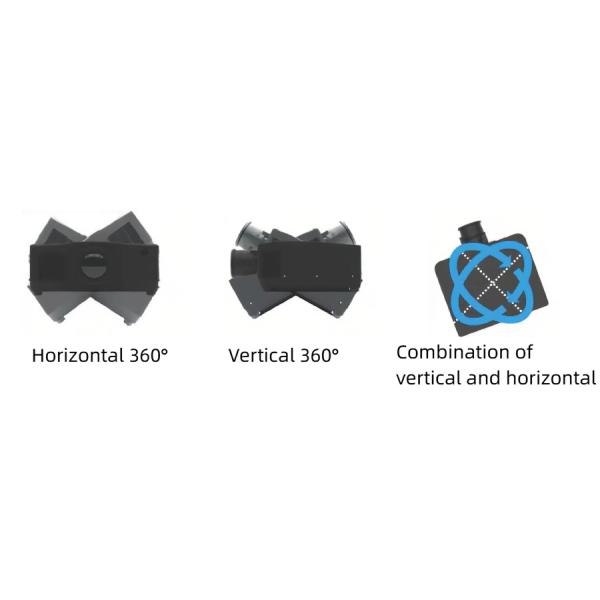

*360°Free Orientation
Specifications
| SMX 20000 Lumen 3LCD Laser Projector |
| Model | MX-X20000U |
| Brightness(Lumen) | 20000 |
Panel
| Display Panel | 3x1.0" |
| Display Technology | Liquid Crystal Display |
| Native Resolution | WUXGA (1920 x 1200) |
Laser Lifetime
| Normal mode | 20000hrs |
| ECO mode | 30000hrs |
| Projection Lens
| Zoom/Focus | Motorized |
| Throw Ratio (16:10) | 1.24-2.01 @100inch |
| F | 1.8-2.24 |
| f | 27.7-44.3mm |
| Zoom Ratio | 1.62 |
| Screen size(Performance guarantee range) | 60-500 inch(80-500 inch) |
| Lens Shift V | ±65% |
| Lens Shift H | ±25% |
| Contrast Ratio(Min) | 3,000,000:1 |
| Aspect Ratio | Native:16:10 Compatible: 4:3/16:9/normal/16:6 |
| Input
| VGA | *1 |
| HDMI 1.4(IN) | *2 |
| USB-A | *1 |
| USB-B | *1(Display) |
| RJ45 | *1(Display) |
| DVI-D | *1 |
| HD BaseT | *1 |
| HD-SDI (3G-SDI) | Optional |
Audio in
(mini jack,3.5mm) | *1 |
| DMX512 | *1 |
| Output | HDMI 1.4(OUT) | *1 |
| Control
| Audio out
(mini-jack,3.5mm) | *1 |
| RS232C (Input) | *1 |
| RS232C (Output) | *1 |
| Wired Remote(IN) | *1 |
| Wired Remote(OUT) | *1 |
| Keystone | Keystone Correction | V: ±30°
H:±30°
Pincushion/Barrel Correction
6 Corner Geometry correction
Grid ImageTune correction |
| Languages | 26 languages:
English, German, French, Italian, Spanish, Polish, Swedish, Dutch ,Portugese, Japanese, Simplified Chinese, Traditional Chinese, Korean, Russian, Arabic, Turkish, Finnish, Norwegian, Danish, Indonesian, Hungarian, Czech, Kazak,Vietnamese,Thai, Farsi |
| LAN Control
| LAN Control-RoomView (Crestron) | Yes |
| LAN Control-AMX Discovery | Yes |
| LAN Control-PJ Link | Yes |
| Other
| 360° projection | Yes |
| Edge Blending | Yes |
| Adjustable brightness | Yes |
| Lens position memory, lens locking function | Yes |
| Closed dustproof design, free of maintenance and replacement of filter screen | Yes |
| DMX512 lighting protocol | Yes |
| Dimension&Weight
| MAX Dimensions
(WxHxD mm) | 599X240.2X493.8mm (not including lens) |
| Net. Weight (KG) | 28.9Kg (not including lens) |
Packaging Box Dimensions
(WxHxD mm) | 745**370*630 (not including len) |
| Gross. Weight (KG) | 34Kg (not including lens) |
| Package | Carton, Flight case optional |
| Standard Accessaries | Power cord (3m, Black), Remote control |
Recommend Applications
-Auditoriums
-Large Conference rooms
-Exhibitions/Events
-Museums/Galleries
-Theatres/Halls
-Houses of Worship
-Signages
